LUGV

AUTONOMOUS LOGISTIC UNMANNED GROUND VEHICLE

LOGISTIC UNMANNED GROUND VEHICLE - TECH SPECS

DIMENSIONS

Height
1230 mm
Length
2600 mm
Width
1610 mm
Weight
2000 kg
Working slopes
Up to 42°

CARGO PLATFORM

Dimensions
1213 x 1020 mm
Angles
35° - front and back, 21° - sides

ELECTRIC SYSTEM

Battery
48 V (LiFePo)
Battery Capacity
43 kWh
Battery run-time
8 - 12 h *depending on operation
Time of charging
8 - 10 h

DRIVE

Minimum speed
0.5 km/h
Maximum speed
5 km/h
Maximum power
10 kW
Pulling force
19.6 kN

Caterpillars

Type
Dual tracks

Gearbox

Type
3-stage, 2 belts, 1 chain

Brake System

Type
Automotive drum brake

Navigation

GNSS system
High resolution touch sensor

TEST THE LIMITS—BOOK A TEST DRIVE!

Experience first-hand the high-mobility autonomous logistic unmanned ground vehicle that dominates any terrain.

REGISTER FOR A TEST DRIVE

LUGV - Redefining Logistics Where Roads End

The LUGV is a fully electric unmanned ground vehicle engineered for autonomy, adaptability, and rugged performance. Built for critical infrastructure and defense logistics, the LUGV combines environmental sustainability with disruptive transport capabilities that are designed to transform how dangerous, heavy, and high-value cargo is transported across the most unforgiving environments—all without exposing human lives to unnecessary risks.

At the core of the LUGV’s performance is its gravity-stabilized platform, enabling safe cargo transport even across steep or uneven terrain. Capable of handling slopes of up to 38°, the vehicle ensures that up to 1500 kg of cargo is transported safely and securely, uphill or downhill, without the risk of shifting or destabilization.

The LUGV uses cutting-edge R-Wave 2D MP radar technology and field-deployable radio beacon markers to achieve full autonomous navigation, operating independently of GNSS signals. By eliminating the dependency on satellite-based navigation, our system not only enhances operational safety but also ensures mission continuity in GNSS-denied environments.

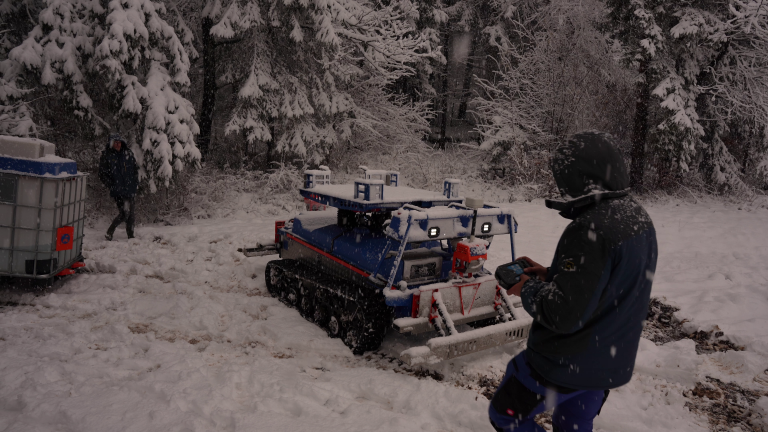

In addition to autonomous functionality, the LUGV can be operated remotely with First-Person View (FPV) capabilities. This offers enhanced operational flexibility, allowing human oversight in complex scenarios, while still minimizing personnel exposure to hazardous zones. This dual-functionality makes the LUGV a reliable asset for both autonomous and semi-autonomous operations.

One of the most compelling features of the LUGV, however, is its modular design. A robust base-platform that is engineered to support logistics missions that require unmatched terrain mobility and environmental adaptability. From battlefields to disaster-stricken areas, this base-platform serves as a launchpad for a variety of mission-specific configurations.

The platform can be easily customized to support a wide range of mission profiles:

  • Defence: Transport of explosives, ammunition, and other hazardous cargo across shelled or contaminated terrain.
  • Fire & Rescue: Deployed into fire grounds or chemical zones for safe delivery of equipment, or to support personnel in life-threatening situations.
  • Civil Protection: Used in natural disasters such as landslides, earthquakes, and floods to deliver supplies or remove debris from dangerous zones.
  • Industrial Logistics: In factories or facilities with manpower shortages or hazardous environments, the LUGV can autonomously handle material transport with precision and reliability.

This versatility transforms the LUGV from a niche solution into a multipurpose logistics vehicle, supporting both military and civilian operations.

Ready to take your logistics operation to the next level?

Whether in defense, emergency response, or industrial logistics, our LUGV sets a new standard in unmanned transport. With full autonomy, environmental integrity, and unmatched terrain capabilities, we are not just building a vehicle—we are building the future of logistics, where safety, innovation, and sustainability converge.

Interested in partnership, subcontracting, or OEM collaboration? Contact us!
