FFRS

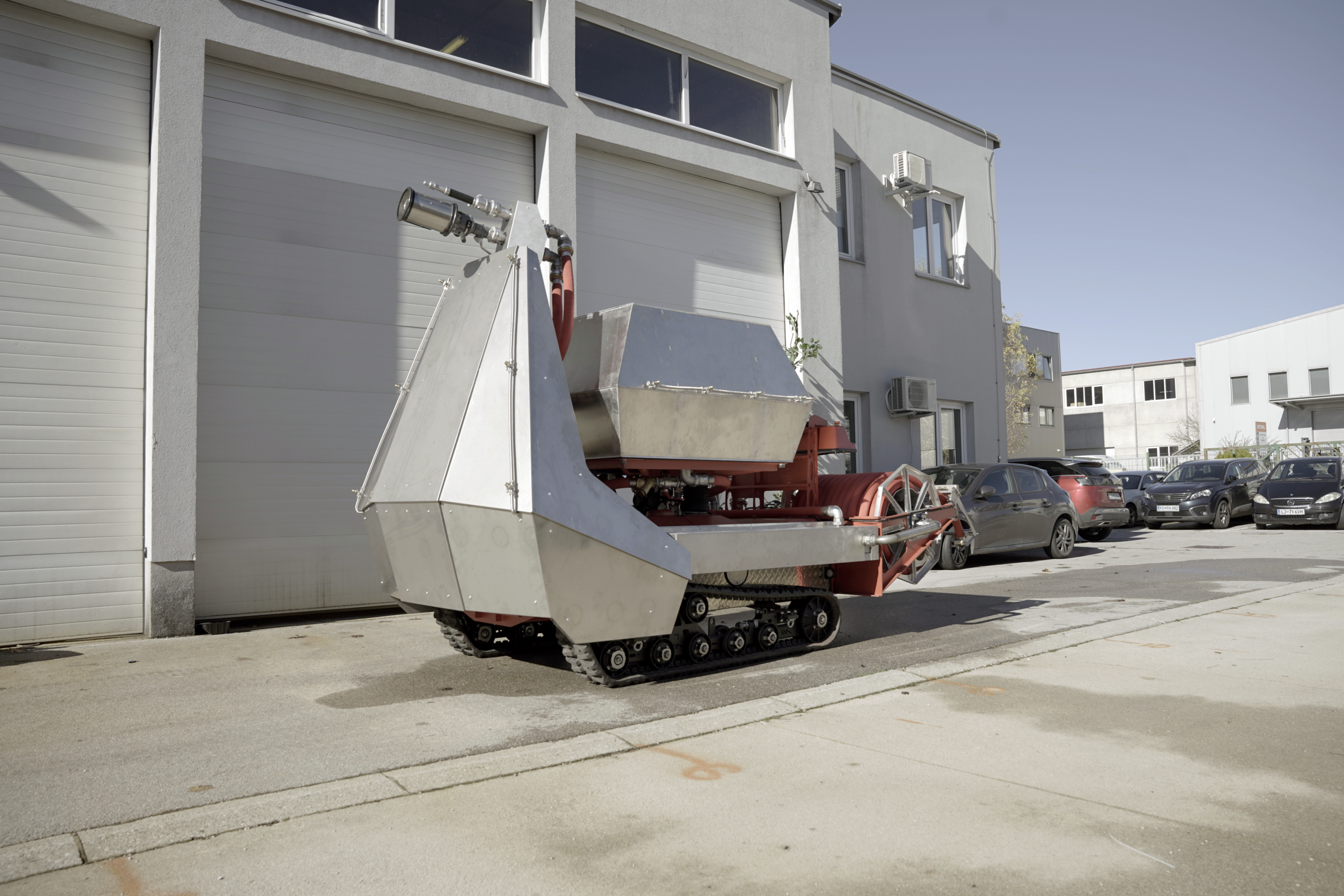

Autonomous Quick-Response Firefighting Robotic System

  • MAIN FEATURES

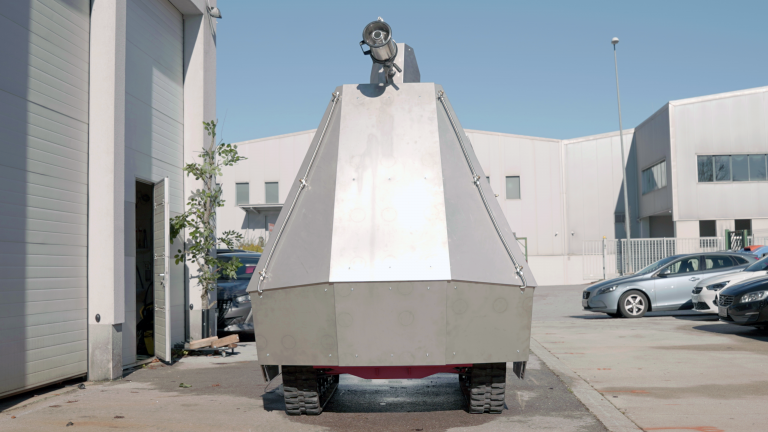

    • Heat Shield & Sprinklers

      Designed to withstand high temperatures, using a robust heat shield with sprinklers for external- and additional air conditioning for internal temperature control.

    • No External Cisterns Needed

      The FFRS is equiped with a 1,700 litre cistern and additional foam compartments that enable autonomous operation without the need for external cisterns.

    • Quick Response System

      A mission-ready, autonomous, electric firefighting robotic system that ensures quick emergency response time under 3 minutes, allowing to control the situation in the critical moments of

    • Powered by EV48

      Fully electric design ensures low operating costs and minimal maintenance needs for environmentally-friendly operation with suprisingly low total cost of ownership for budget-friendly firefighting needs.

    • Easily Transported (B+E license)

      FFRS is easily transported via light car-trailer (B+E license) and does not require any additional permits or convoys to go where you need it to be.

    • Remote / Autonomous Control

      Allows personnel to engage in fire fighting remotely via remote control / command unit with optional first person view goggles or autonomous operation.

    • Modular Design

      To suit various operational requirements, the FFRS allows easy integration of various configurations, including water tanks, dust tanks, foam generators, air stations, and more.

    • All-terrain Operation

      High-torque tracked system conquers any terrain be it mud, sand, snow, or gravel, while the gravity stabilized cistern enables operation on inclines up to 38°.

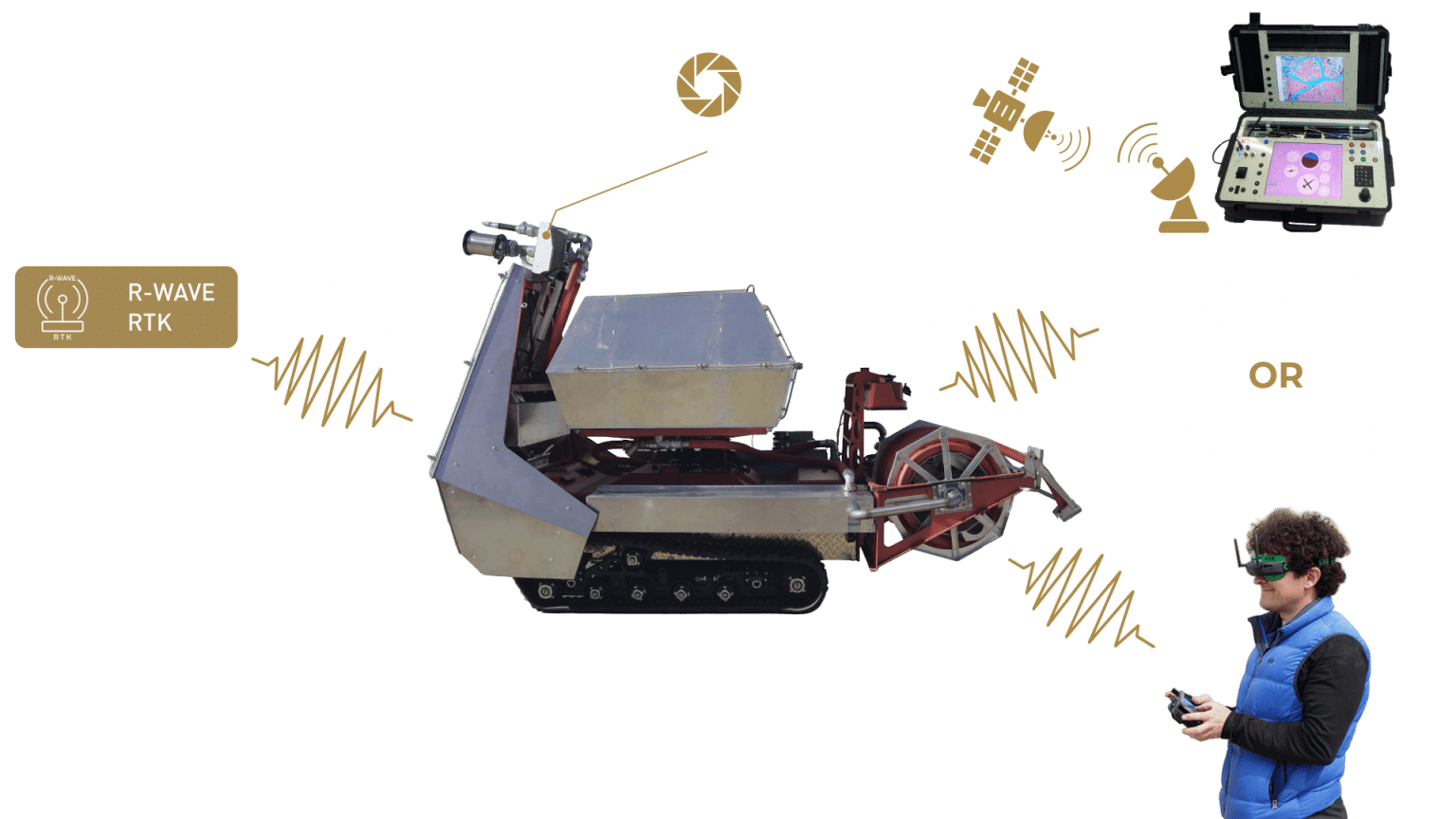

  • INTUITIVE REMOTE OPERATION

    INTUITIVE and reliable COmmand

    FFRS is piloted via remote control with optional first-person view (FPV) goggles. Intuitive command control ensures reliable operation and ease-of-use.

    FIREFIGHTING ROBOTIC SYSTEM - TECH SPECS

    DIMENSIONS

    Height
    2800 mm
    Length
    4450 mm
    Width
    1950 mm
    Weight
    2,800 kg
    Vehicle Working Slopes
    Up to 32°

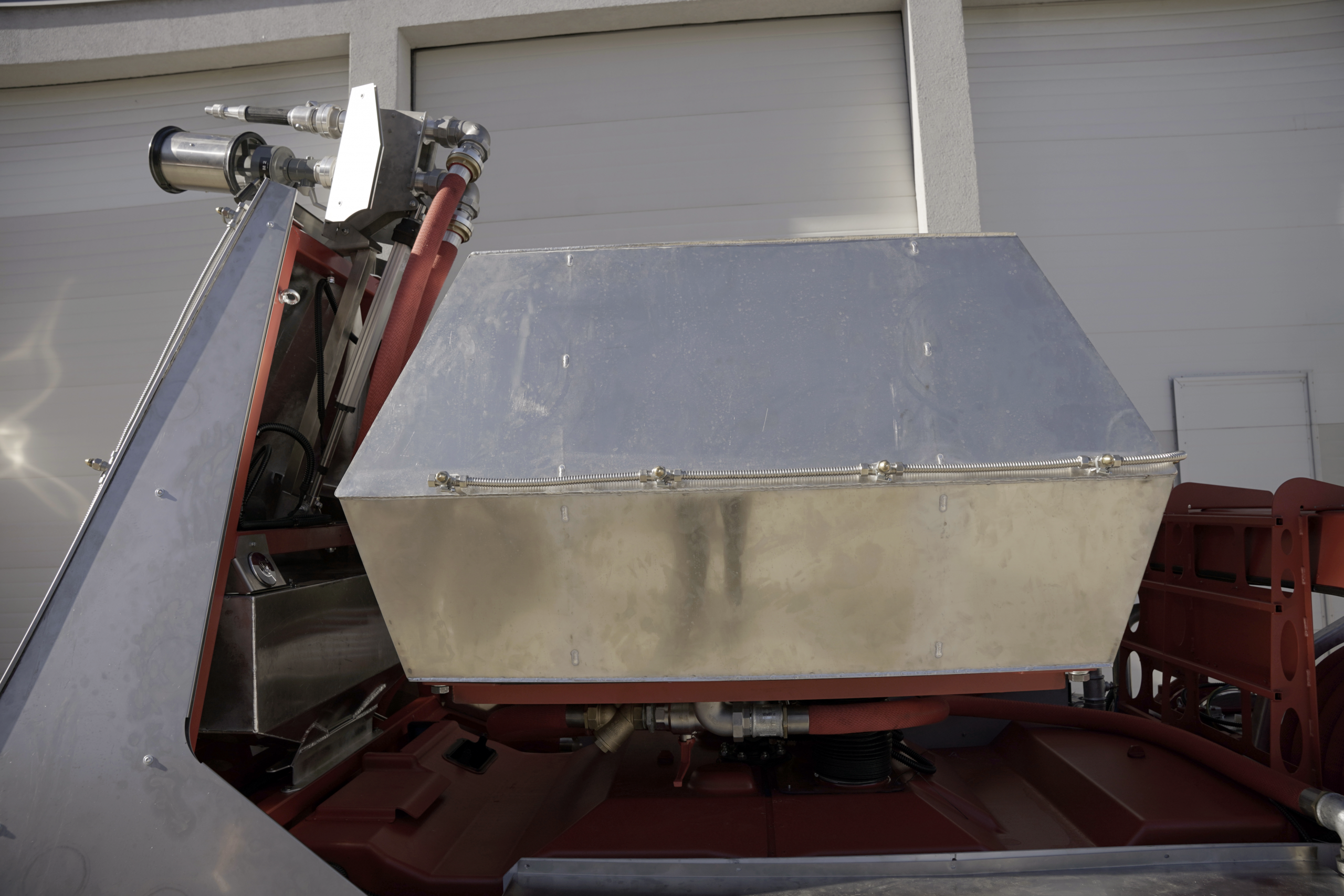

    MAIN CISTERN

    Dimensions
    1600 x 1500 x 900 mm
    Water Cistern Volume

    1,700 litres (H2O)

    Concentrate Canister Volume
    180 litres
    Water Pump Pressure
    up to 16 Bar
    Water Pump Productivity
    up to 340 litres / min

    Hose

    Maximum Hose Length
    50 m

    ELECTRIC SYSTEM

    Battery
    48 V (LiFePo)
    Battery Capacity
    43 kWh
    Battery Run-time
    8 - 12 h *depending on operation
    Time of Charging
    8 - 10 h

    DRIVE

    Minimum Speed
    0.5 km/h
    Maximum Speed
    5 km/h
    Maximum Power
    10 kW
    Pulling Force
    19.6 kN

    Caterpillars

    Type
    Dual tracks

    Gearbox

    Type
    3-stage, 2 belts, 1 chain

    Brake System

    Type
    Automotive drum brake

    WATCH FFRS IN ACTION:

    QUICK-RESPONSE FIREFIGHTING ROBOTIC SYSTEM

    THE 1st SELF-SUFFICIENT ALL-TERRAIN ELECTRIC QUICK-RESPONSE FIREFIGHTING ROBOTIC SYSTEM

    CONTACT US FOR MORE INFORMATION
    DeMiner Autonomous Mechanical Clearance Demining System

    USE-CASE SCENARIOS FOR FIREFIGHTING ROBOTIC SYSTEM:

      Garage Complex Defender

      Fires can escalate quickly inside an enclosed garage. The FFRS can respond to the threat in under 3 minutes, even before firefighters arrive. It suppresses flames at the source, operates safely in smoke and heat, and prevents fire spread to nearby vehicles and structures.

      Military depot Protector

      The FFRS provides immediate response to explosions or fires, operating safely amid smoke, heat, and secondary hazards. It helps contain damage, protect critical assets, and reduce risk to personnel, ensuring mission continuity when it matters most.

      civil unrest control

      The FFRS is ideal for crowd control operations where civil unrest dispersal is necessary to keep people safe and maintain order. In such situations the FFRS can act as a non-lethal water-cannon anti-riot system.

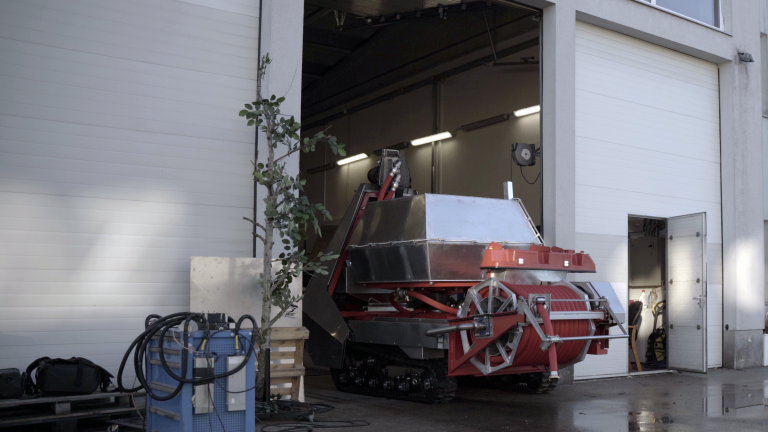

      patrol & respond guardian

      The FFRS is designed for dual-use applications and can be utilized as a non-lethal guardian, deterring any would-be infiltrators with a powerful jet of water (up to 232 ps). Use it as perimeter security and response to threats.

      Infrastructure guard

      The FFRS enhances safety in civilian infrastructure by providing rapid, autonomous response to fires in industrial factories and facilities. It can access hazardous or hard-to-reach areas, operate without hoses or external water sources, and minimize risk to personnel.

    Fire Fighting Robotic System (FFRS): Autonomous, Immediate, and Built for Extreme Conditions

    Modern fire incidents increasingly occur in environments that are too dangerous, inaccessible, or time-critical for conventional firefighting vehicles. Ammunition depots, fuel storage areas, underground garages, industrial plants, and remote locations demand a solution that can respond immediately—without putting human lives at risk.

    The Fire Fighting Robotic System (FFRS) is a fully electric, autonomous and remotely operated robotic firefighting platform designed to meet exactly these challenges. Built on PEK Defence’s cost-effective Spektrum – base platform, the FFRS delivers the readiness of a wall-mounted fire extinguisher combined with the power and mobility of a heavy firefighting asset.

    Designed for Immediate Response (under 3 minutes)

    Unlike conventional fire trucks or large emergency vehicles, the FFRS is engineered for rapid response deployment. Stored in a dedicated container or protected area, the system remains fully charged and continuously monitored. Upon alarm activation, it can be operational within 3 minutes, enabling personnel to engage in initial firefighting remotely and safely.

    This immediate response capability is critical during the early stages of a fire, when containment can prevent escalation, structural damage, or catastrophic secondary explosions.

    Independent and Self-Contained Operation

    The Fire Fighting Robotic System operates without hoses, hydrants, or external cisterns. It carries its own firefighting agents, allowing deployment in locations where water infrastructure is unavailable, damaged, or unsafe.

    Key capabilities include:

    • Flexible tank capacity: Standard 1,700-liter water or dust tank, expandable up to 2,000 liters
    • Integrated foam or dust systems with generator or blower

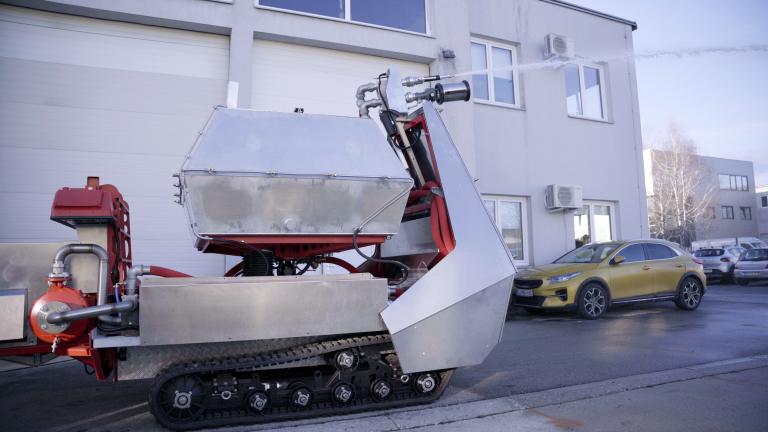

    • High-pressure pump suitable for direct suppression or hose-supported operations
    • Medium-expansion foam capability for industrial and fuel fires
    • Lightweight design, transportable with standard car trailer (B+E license equivalent) without the need for permints, convoys or heavy haulers.

    This self-contained approach significantly reduces logistical complexity and shortens response time.

    Mobility in the Harshest Environments

    FFRS is built for environments where traditional vehicles struggle or fail. Its tracked, all-terrain chassis allows it to operate independently across mud, gravel, snow, sand, debris, and damaged infrastructure.

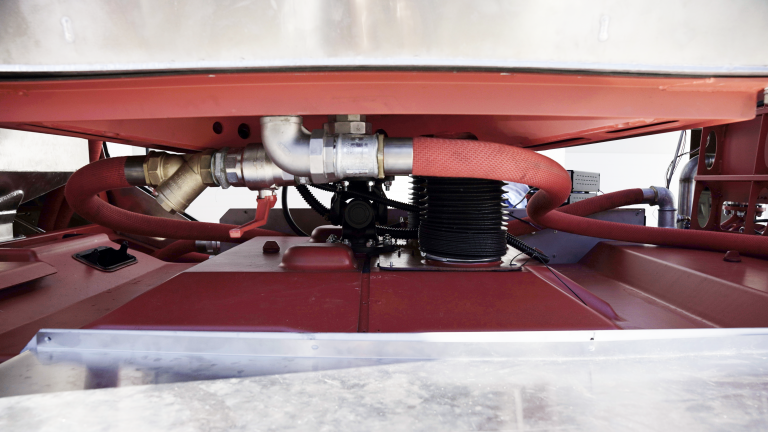

    Thanks to a gravity-stabilized cistern design, the system maintains stability on inclines of up to ±32°, ensuring safe operation even on uneven terrain, ramps, or collapsed surfaces.

    To survive extreme conditions, the platform incorporates:

    • Water shield protection for high-temperature environments
    • Additional air-conditioning for intake systems
    • Heat-resistant shielding for prolonged exposure near active fires

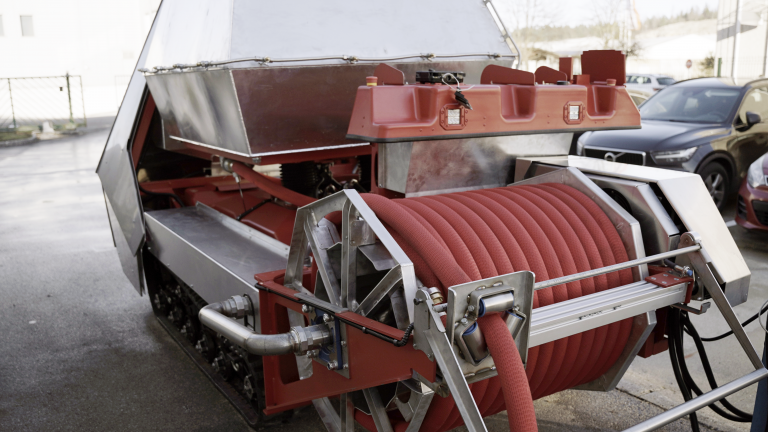

    Modular, Multi-Role Architecture

    At the core of the FFRS is a modular system architecture, allowing rapid reconfiguration for different missions. Depending on operational requirements, the platform can be equipped with:

    • Water, foam, or dust firefighting modules
    • Evacuation equipment (like winches) for vehicle removal from underground parking facilities
    • Air station modules to support firefighting teams
    • Additional modules for various mission profiles

    Cost-Effective and Easy to Deploy

    Unlike large firefighting vehicles that require specialized crews, infrastructure, and high operating costs, the FFRS is designed for affordable ownership and rapid deployment.

    The firefighting robotic system is fully electric, offering low operating and maintenance costs. Can be transported using a standard car trailer with a B+E driver’s license and requires no dedicated firefighting vehicle fleet or permanent crew.

    This makes it particularly suitable for industrial sites, military facilities, logistics hubs, underground garages, and remote installations.

    By combining rapid response, autonomous mobility, modular firefighting capability, and digital fleet management, the FFRS provides a modern answer to today’s most complex fire risks.

    When seconds matter and conditions are extreme, the FFRS is ready – immediately, remotely, and without compromise.
